PUF Comic Classroom: From Chip Fingerprints to NeoPUF

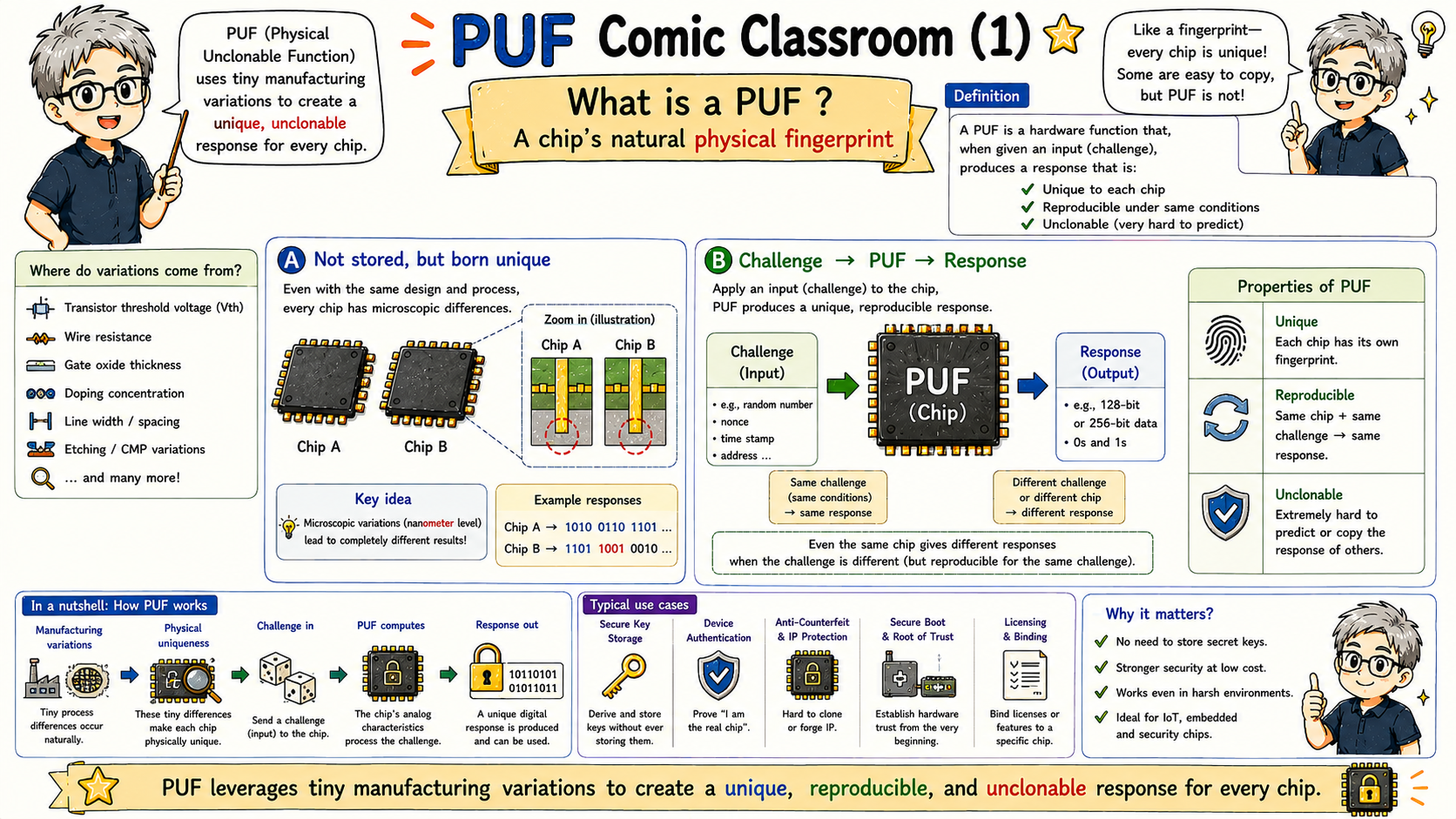

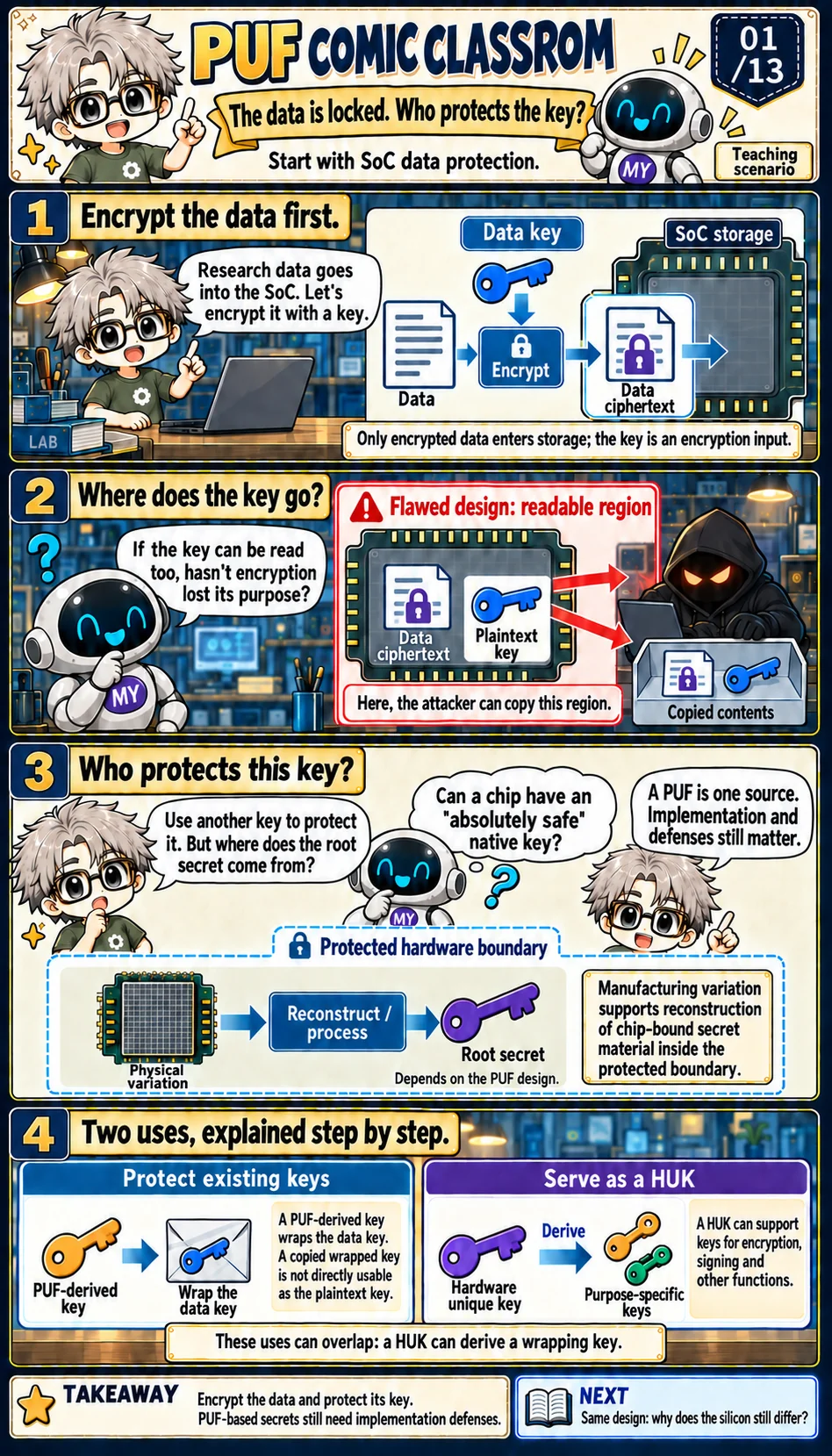

PUF turns tiny manufacturing variation into identity

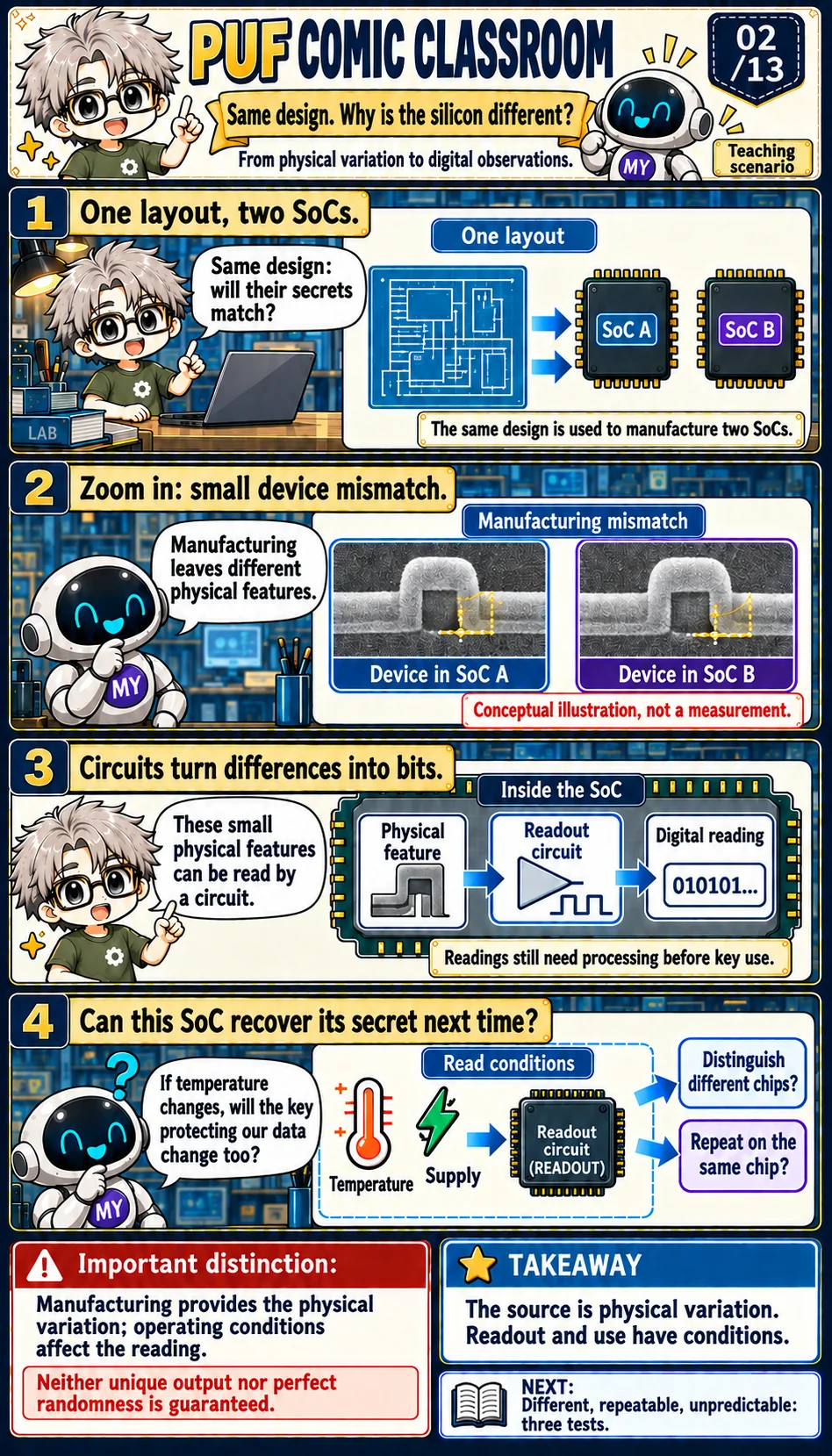

The first page introduces the core idea of a Physical Unclonable Function. Even when two chips are made from the same design database, mask set, fab process, and test flow, they are not physically identical at nanometer scale. Threshold voltage, oxide thickness, wire resistance, doping concentration, line width, etching, and CMP variation all leave tiny local differences inside the silicon.

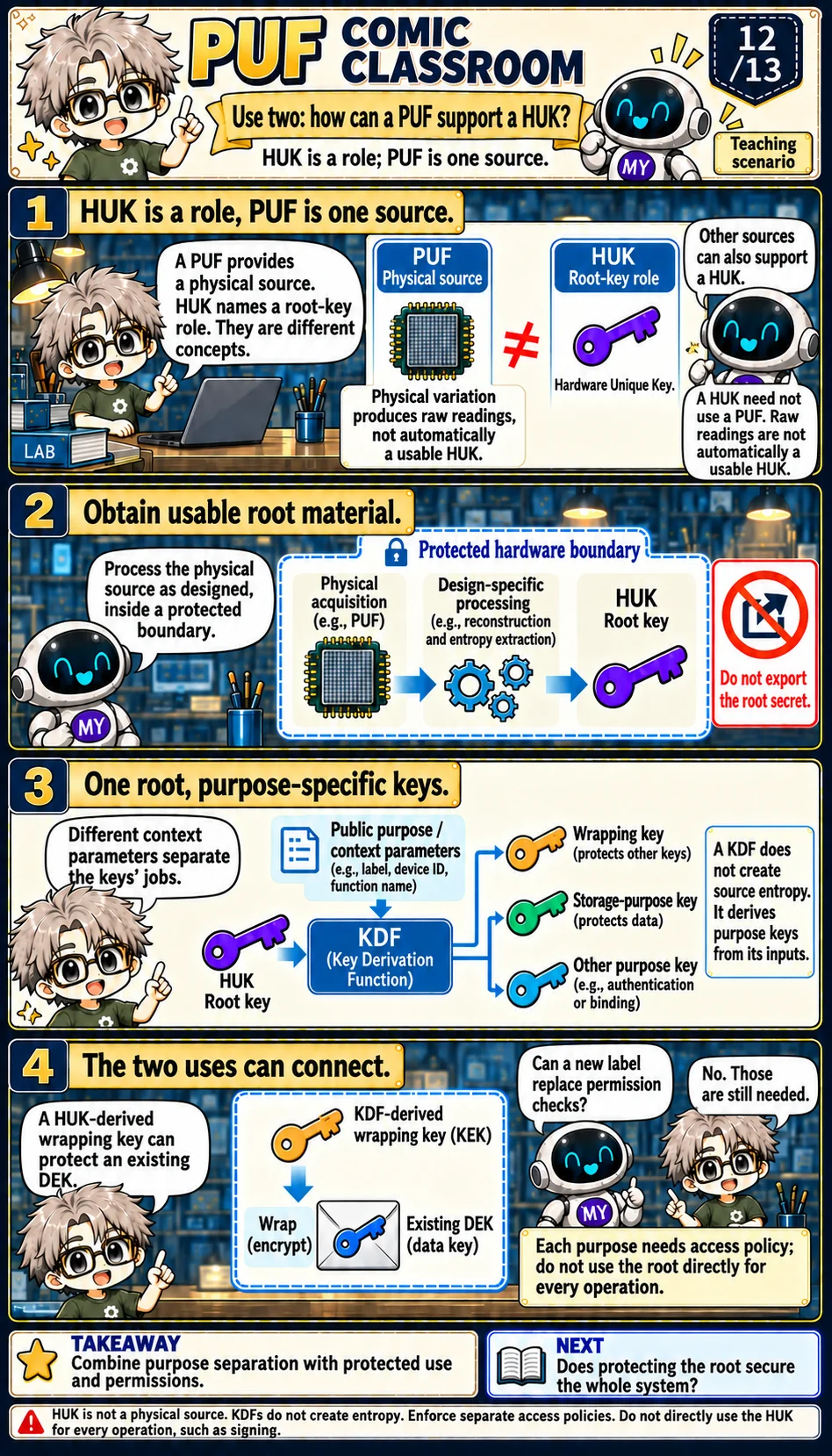

A PUF uses those differences as a source of identity. Instead of programming a serial number or storing a secret key in non-volatile memory, the circuit is challenged and then responds according to its own physical behavior. That response can become a device fingerprint, a seed for key generation, or part of an authentication protocol.

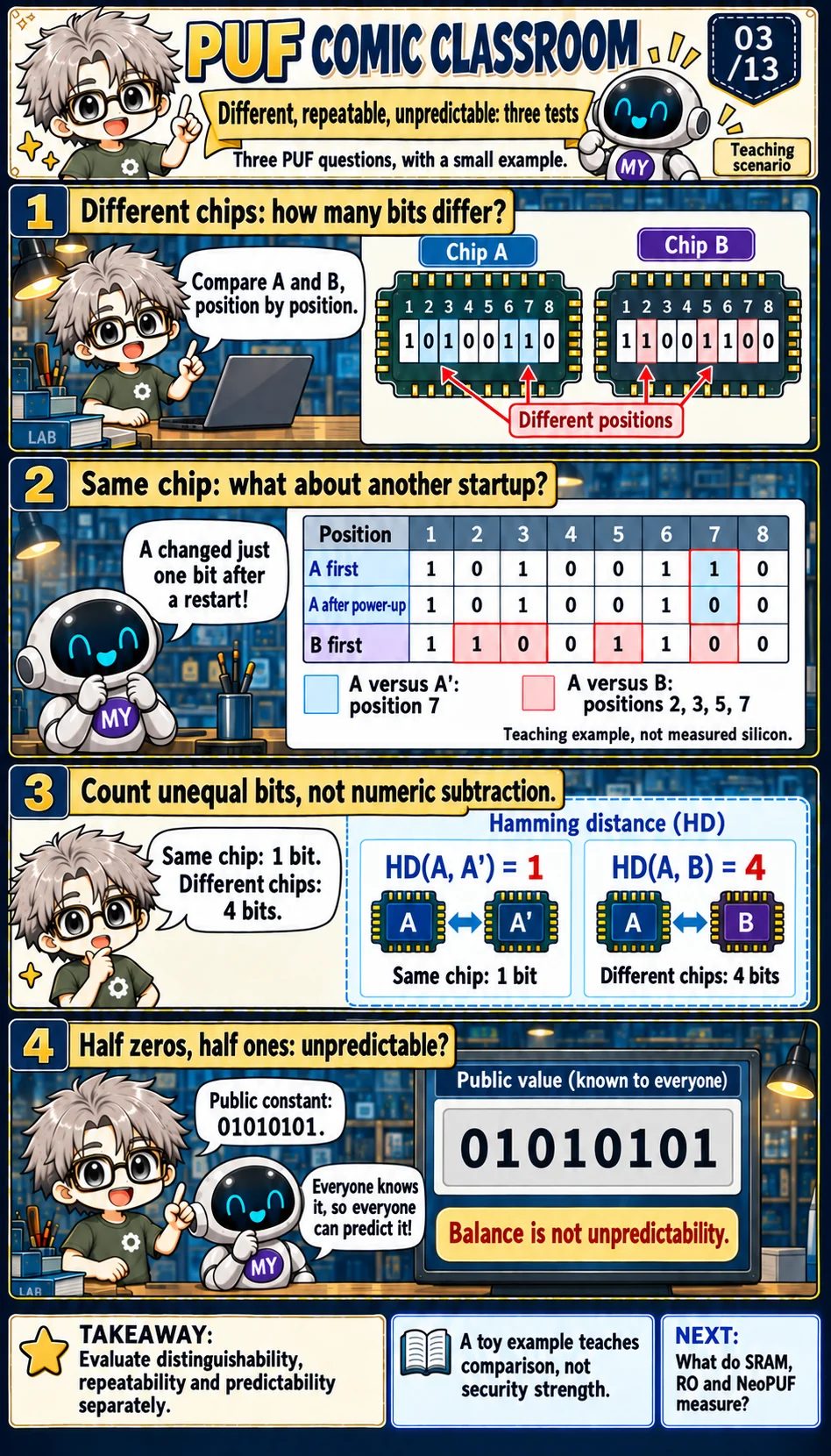

Three properties matter more than the cartoon word 'random'. A good PUF should be unique across chips, reproducible on the same chip under intended operating conditions, and difficult for an attacker to clone or predict. If any one of these is weak, the PUF may still look interesting in a lab demo but become risky in a product.

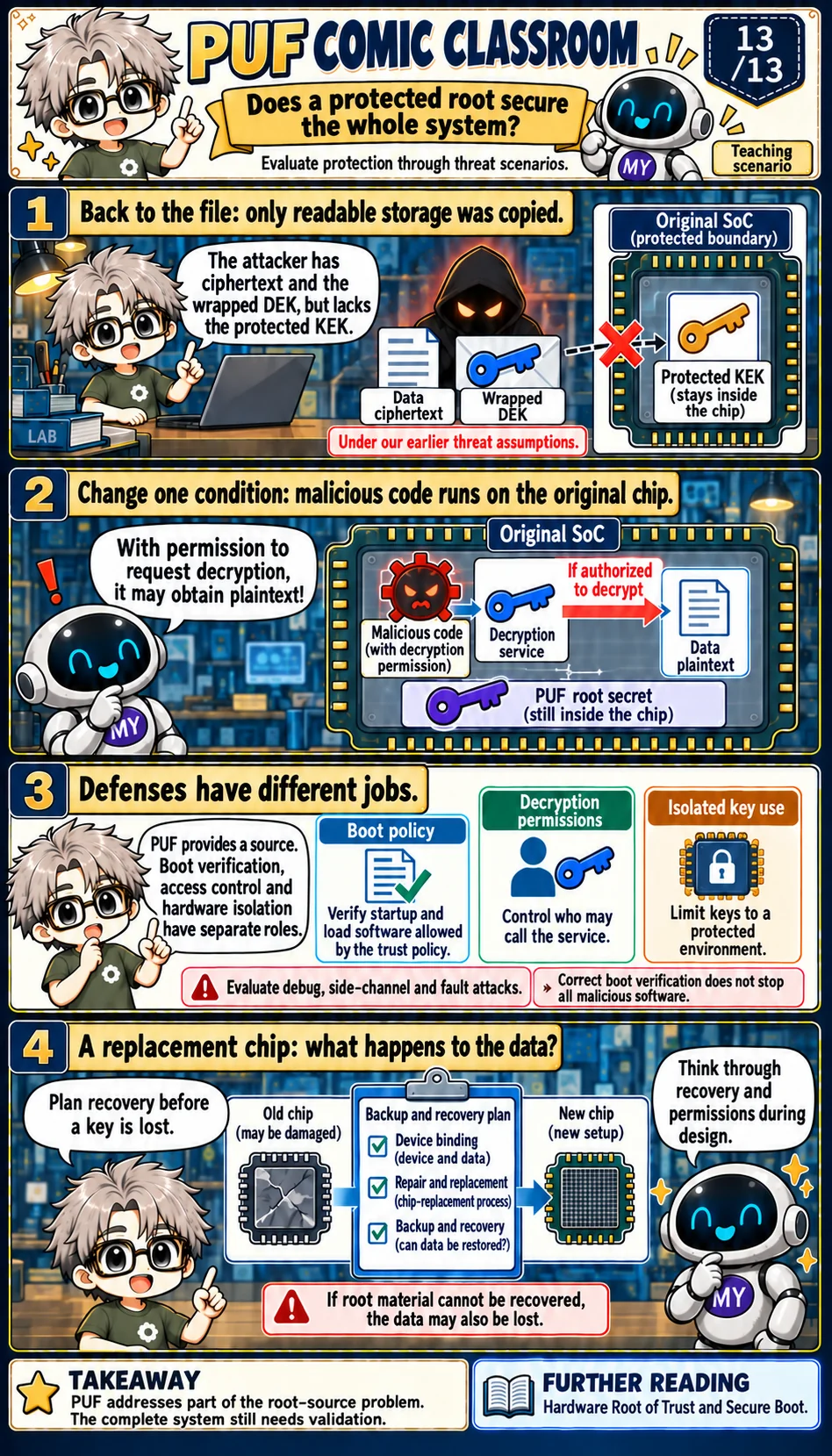

This is why PUF is best understood as a hardware security primitive, not a full security system by itself. The PUF output still has to be wrapped by enrollment rules, error handling, key derivation, access control, anti-tamper design, and a clear threat model.

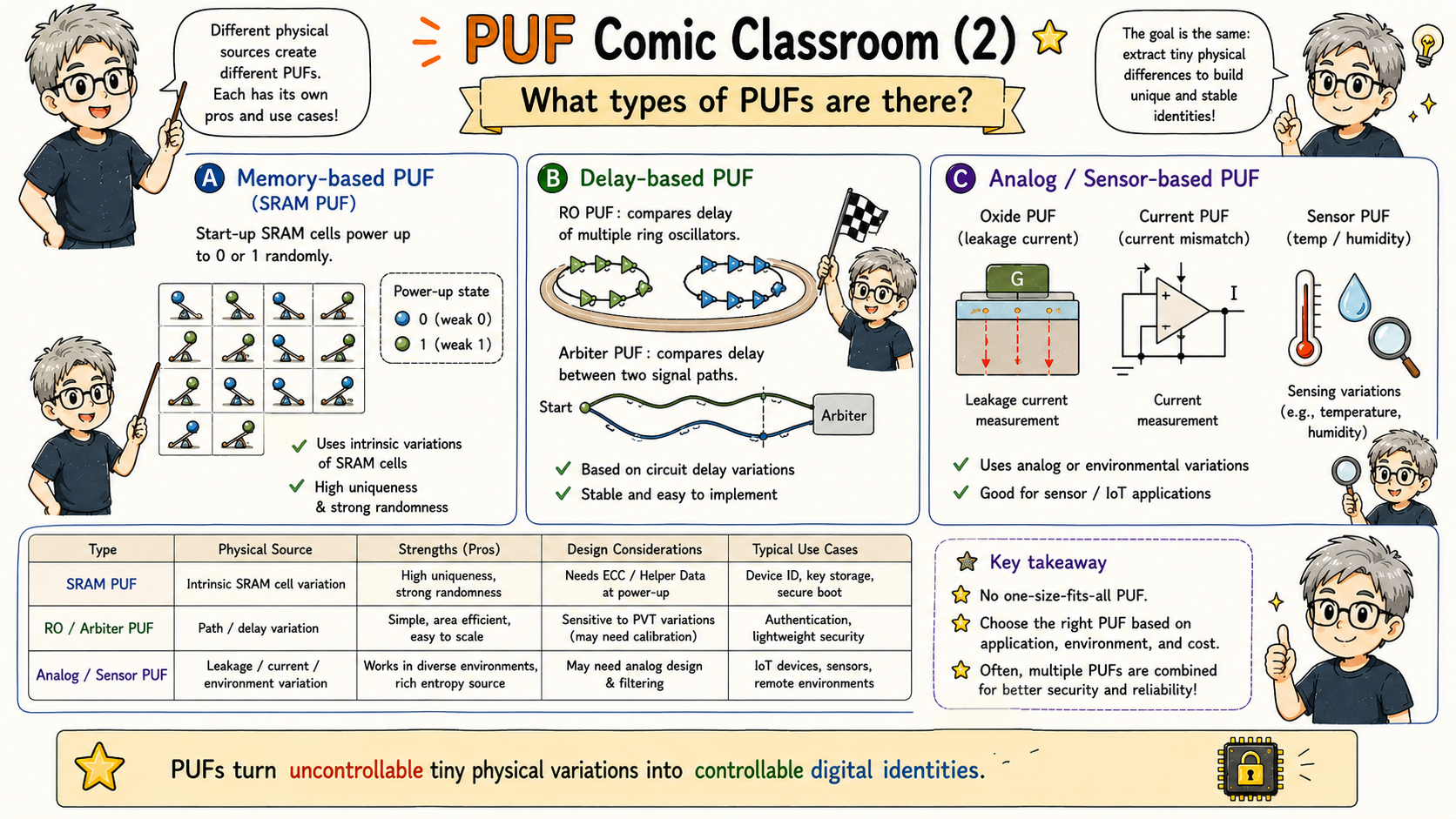

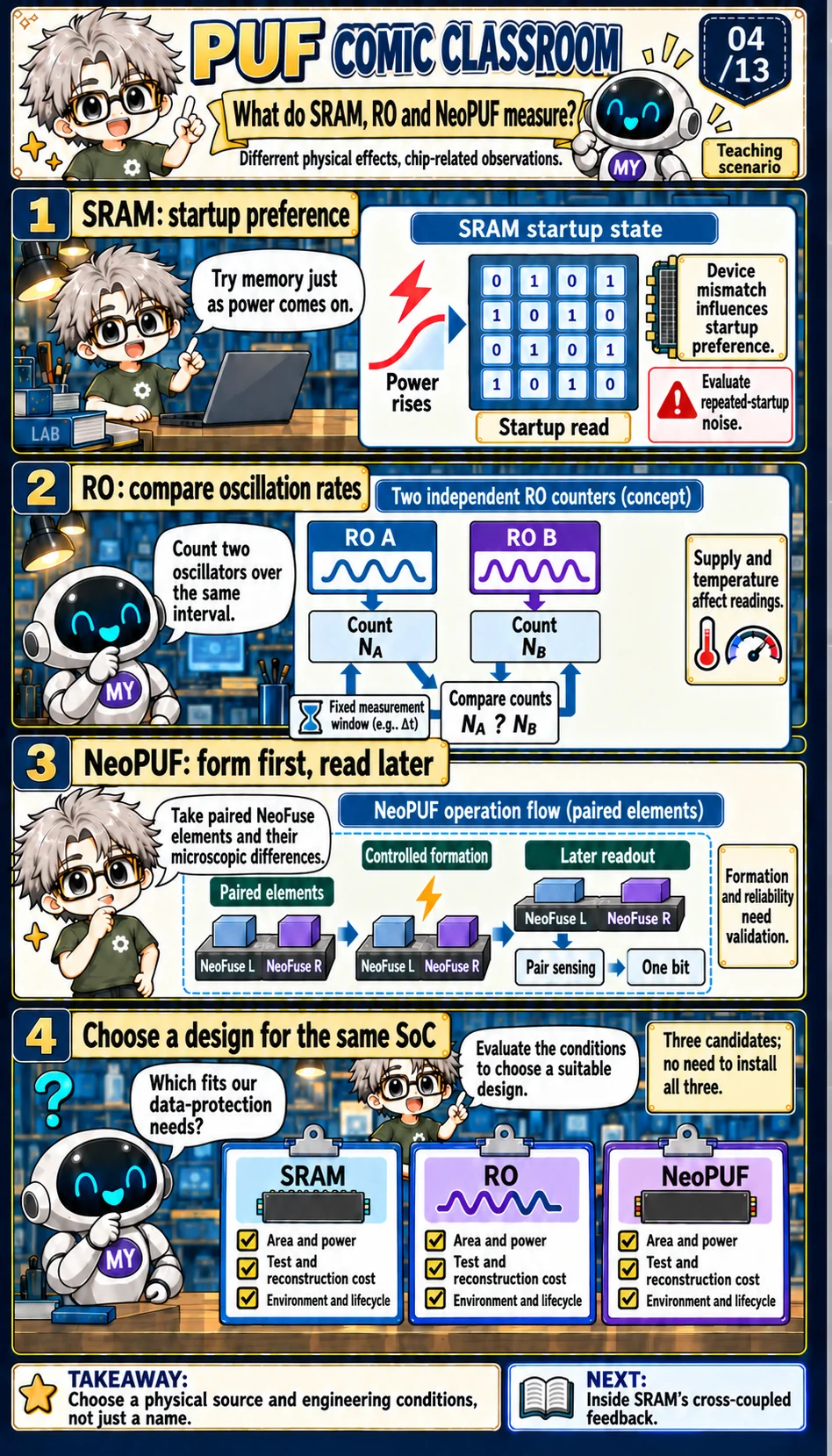

Different PUF types use different physical effects

The second page compares PUF families by their physical source. SRAM PUFs read the natural start-up preference of memory cells. Delay-based PUFs, such as ring oscillator and arbiter PUFs, convert path-delay variation into a comparison result. Analog or sensor-based PUFs use leakage, current mismatch, temperature, humidity, or other environmental and analog variations.

The table is useful because it separates the source of entropy from the product decision. SRAM PUFs can reuse existing memory arrays and are conceptually simple, but they often need stable-bit selection, helper data, or ECC. Delay-based PUFs can be area-efficient, but may be sensitive to PVT variation and modeling attacks if the challenge-response structure is exposed too broadly.

Analog and sensor PUFs can be attractive in IoT or sensor-rich products because the measured variation may already exist in the system. The tradeoff is that analog design, calibration, filtering, environmental compensation, and test coverage become part of the security story.

The engineering lesson is that there is no one-size-fits-all PUF. The correct question is not 'Which PUF is best?' but 'Which physical source, enrollment flow, reliability mechanism, and attack surface fit this product, process, cost target, and lifetime requirement?'

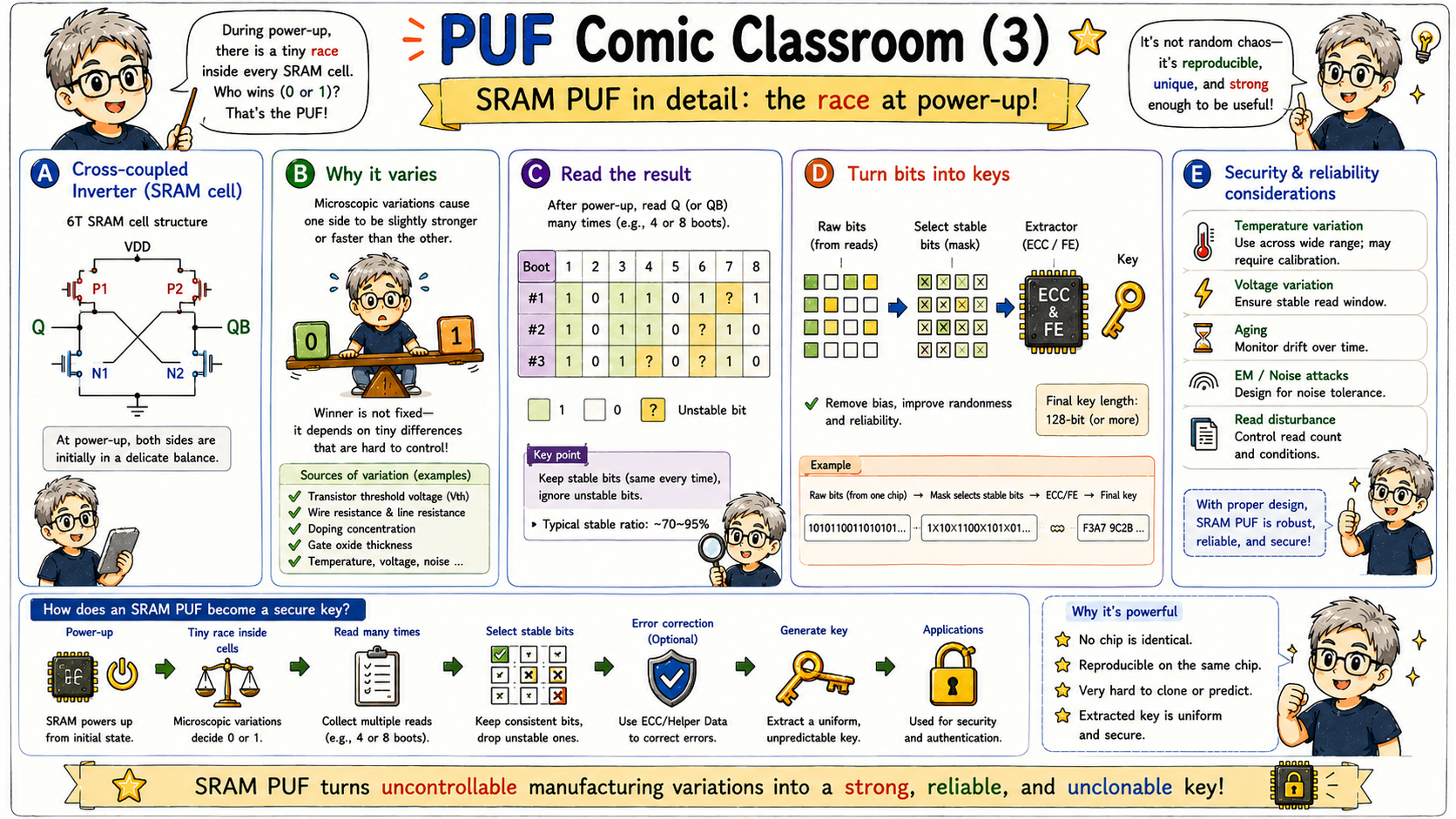

SRAM startup behavior needs correction and protection

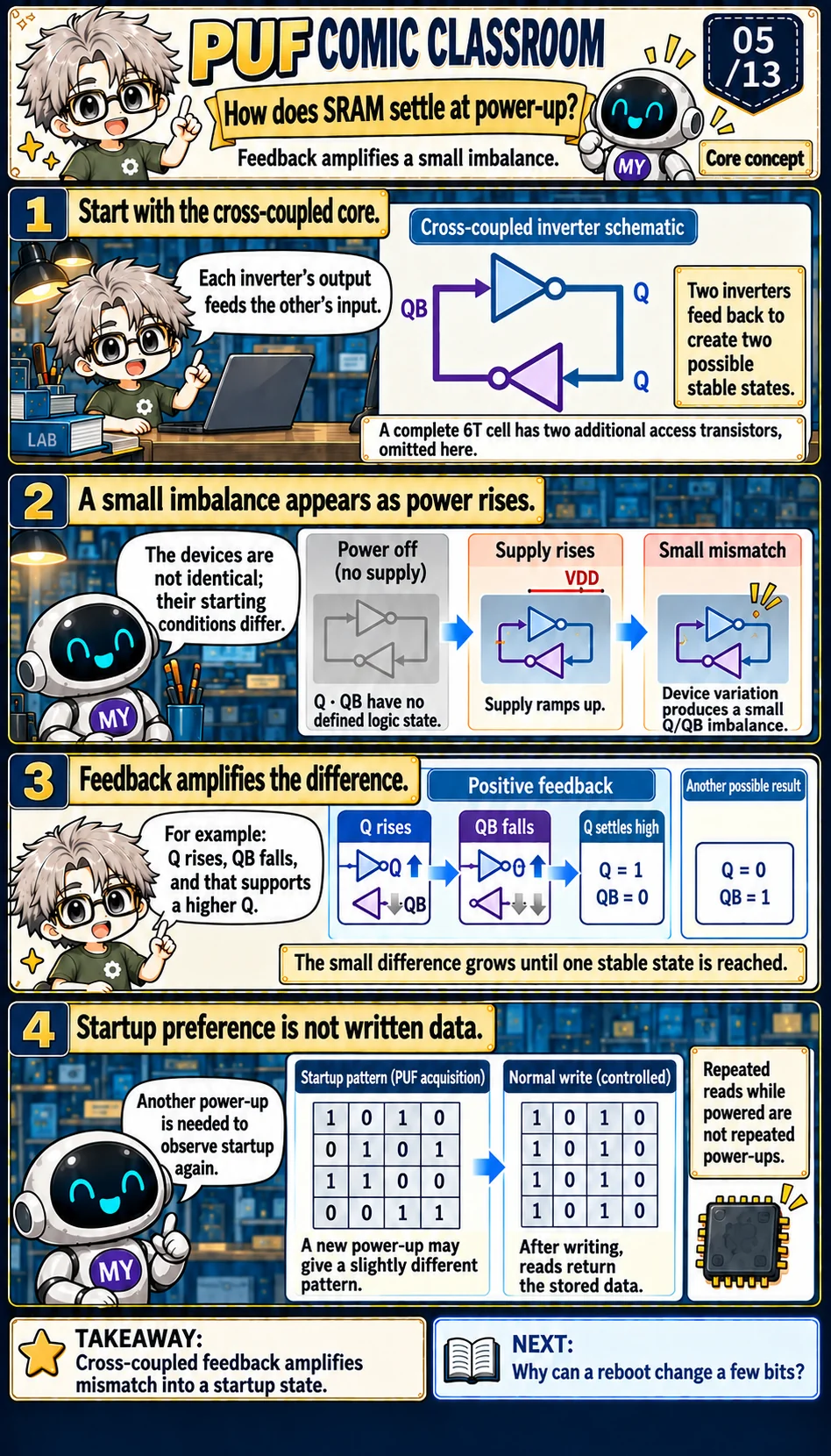

The third page zooms into SRAM PUF. A 6T SRAM cell is built from cross-coupled inverters. During power-up, both sides begin in a delicate balance. In an ideal symmetric world, either side could win. In real silicon, microscopic mismatch makes one side slightly stronger, so many cells show a preferred 0 or 1 after power-up.

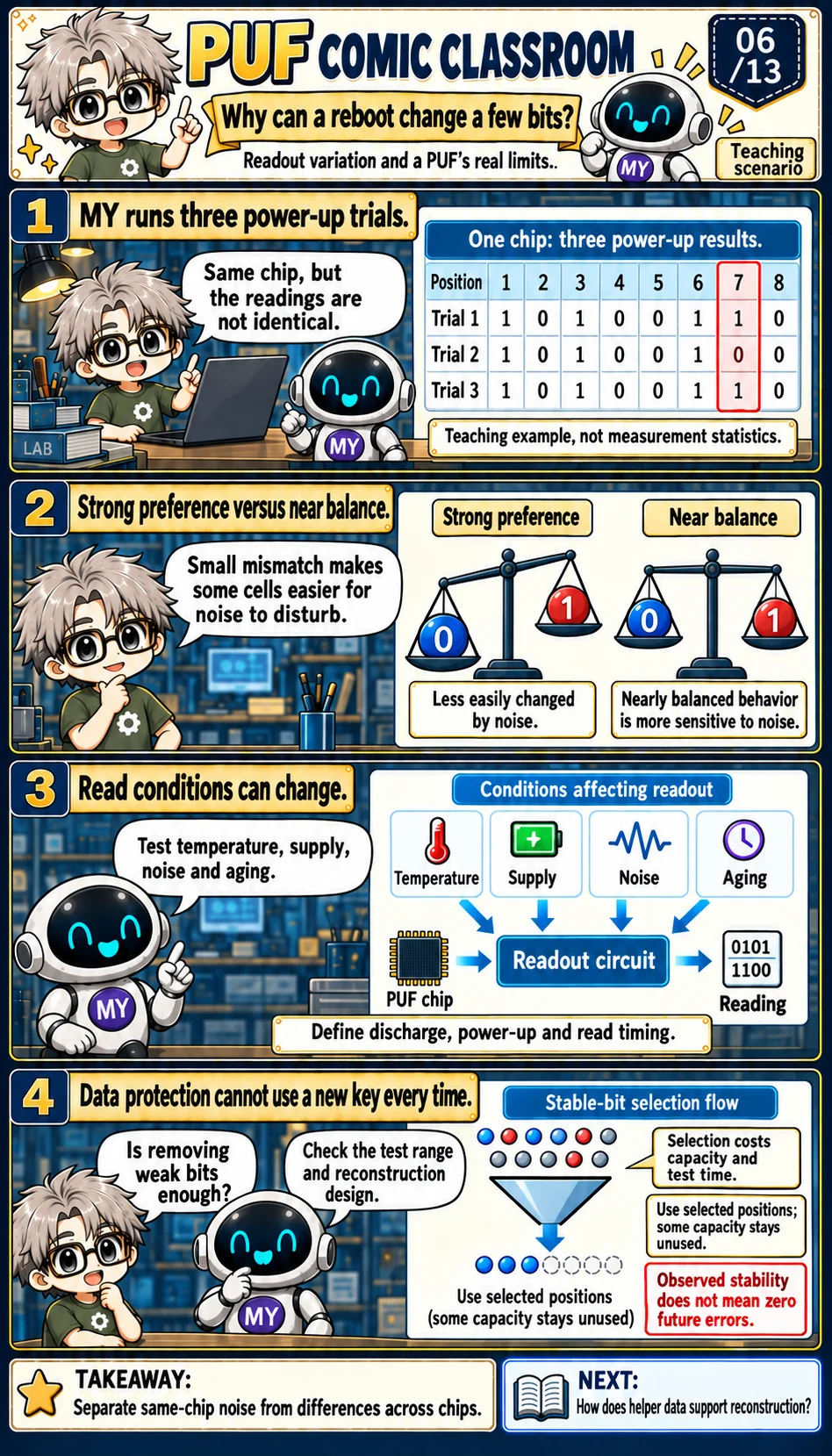

That start-up map can be used as a chip fingerprint, but raw SRAM bits are not automatically a key. Some bits are stable across many boots, while others flip under voltage, temperature, aging, electromagnetic noise, or read-disturb conditions. A secure design must identify stable bits, mask weak bits, and quantify the expected error rate.

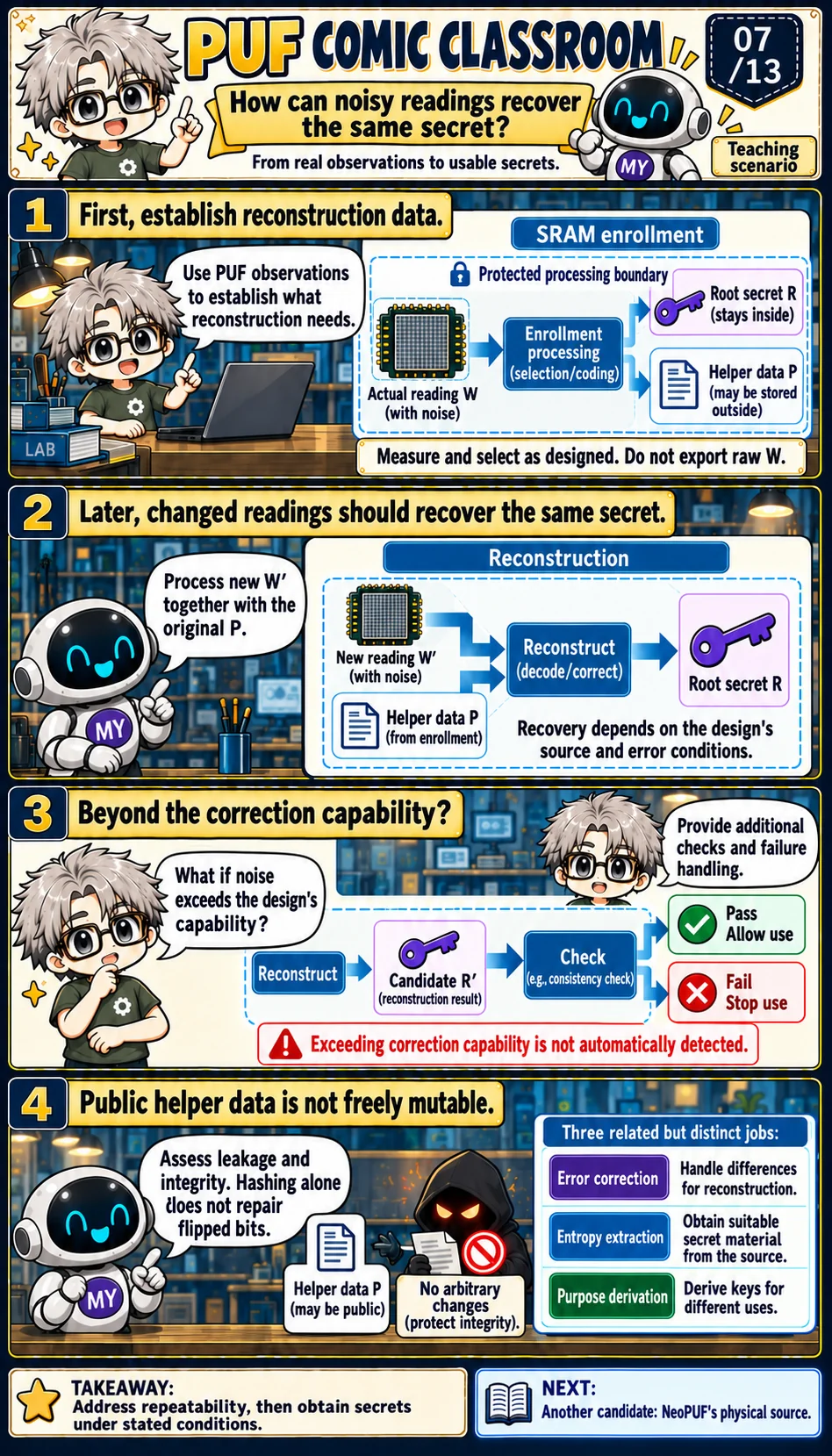

This is why SRAM PUF systems often include repeated reads during enrollment, stable-bit filtering, helper data, ECC, and a fuzzy extractor or key-derivation step. These blocks are not cosmetic add-ons; they are what turn a noisy physical phenomenon into a usable digital secret.

The security detail is subtle: helper data should help reconstruct the key without revealing the key. A PUF design therefore has to review not only bit stability, but also helper-data leakage, enrollment access, replay resistance, debug exposure, and whether the extracted key is uniform enough for its cryptographic use.

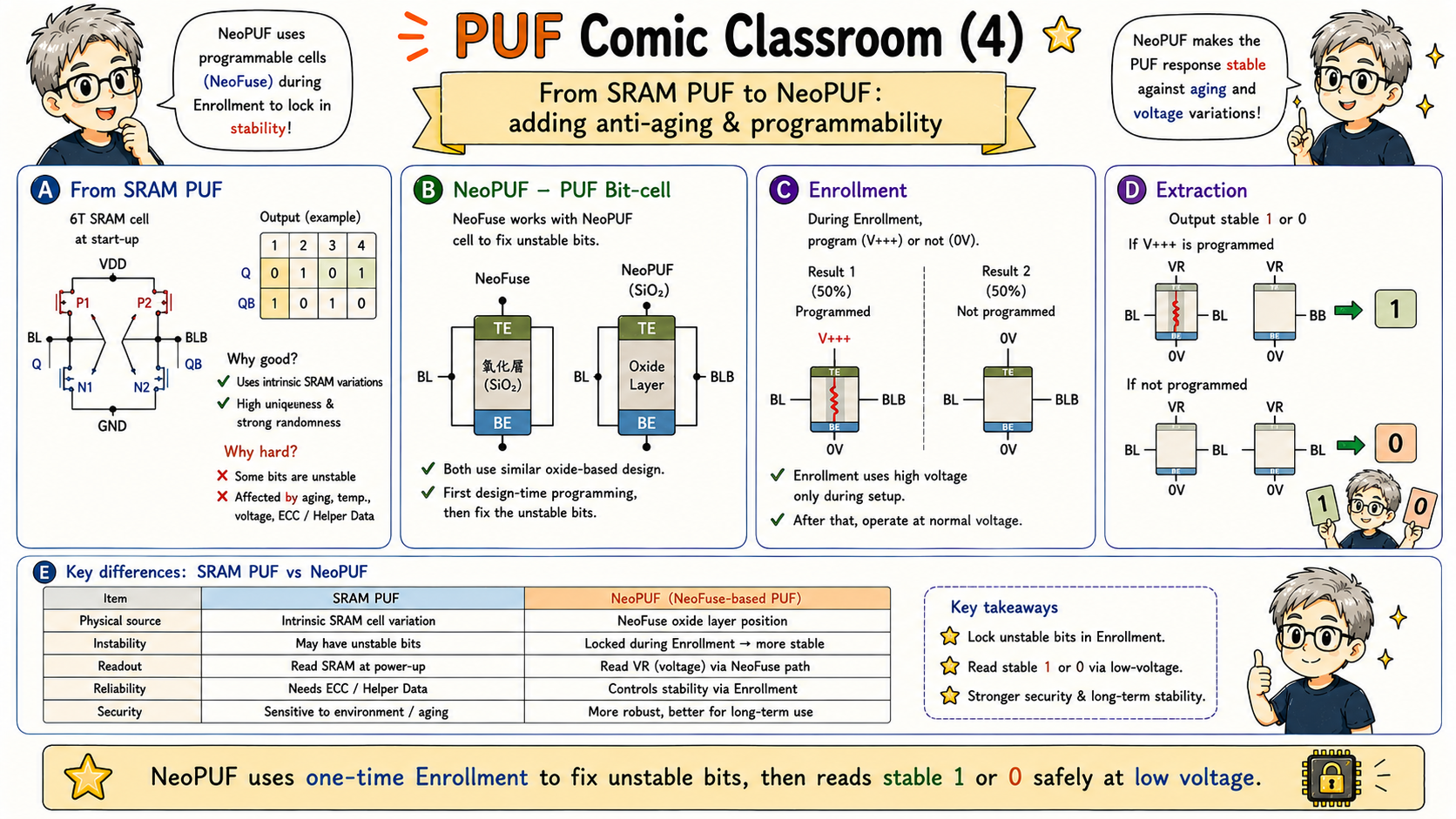

Enrollment turns physics into a usable key flow

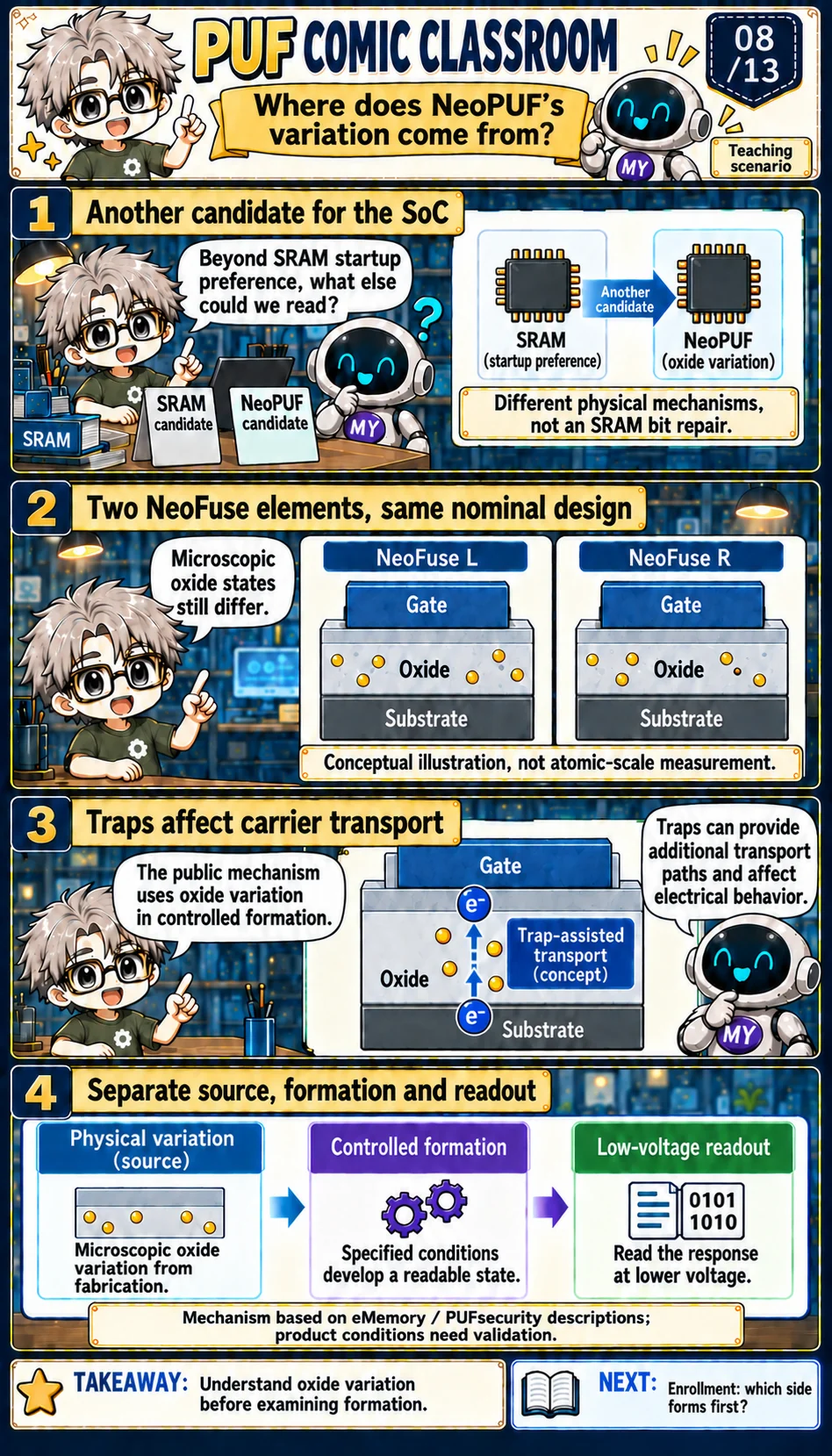

The final page connects SRAM PUF intuition to NeoPUF. SRAM PUF relies on intrinsic SRAM-cell mismatch at start-up. NeoPUF, based on NeoFuse-style oxide behavior, uses an enrollment step to lock in a physical state and then reads it later at a lower operating voltage. The picture is showing a product flow, not just a device-physics trick.

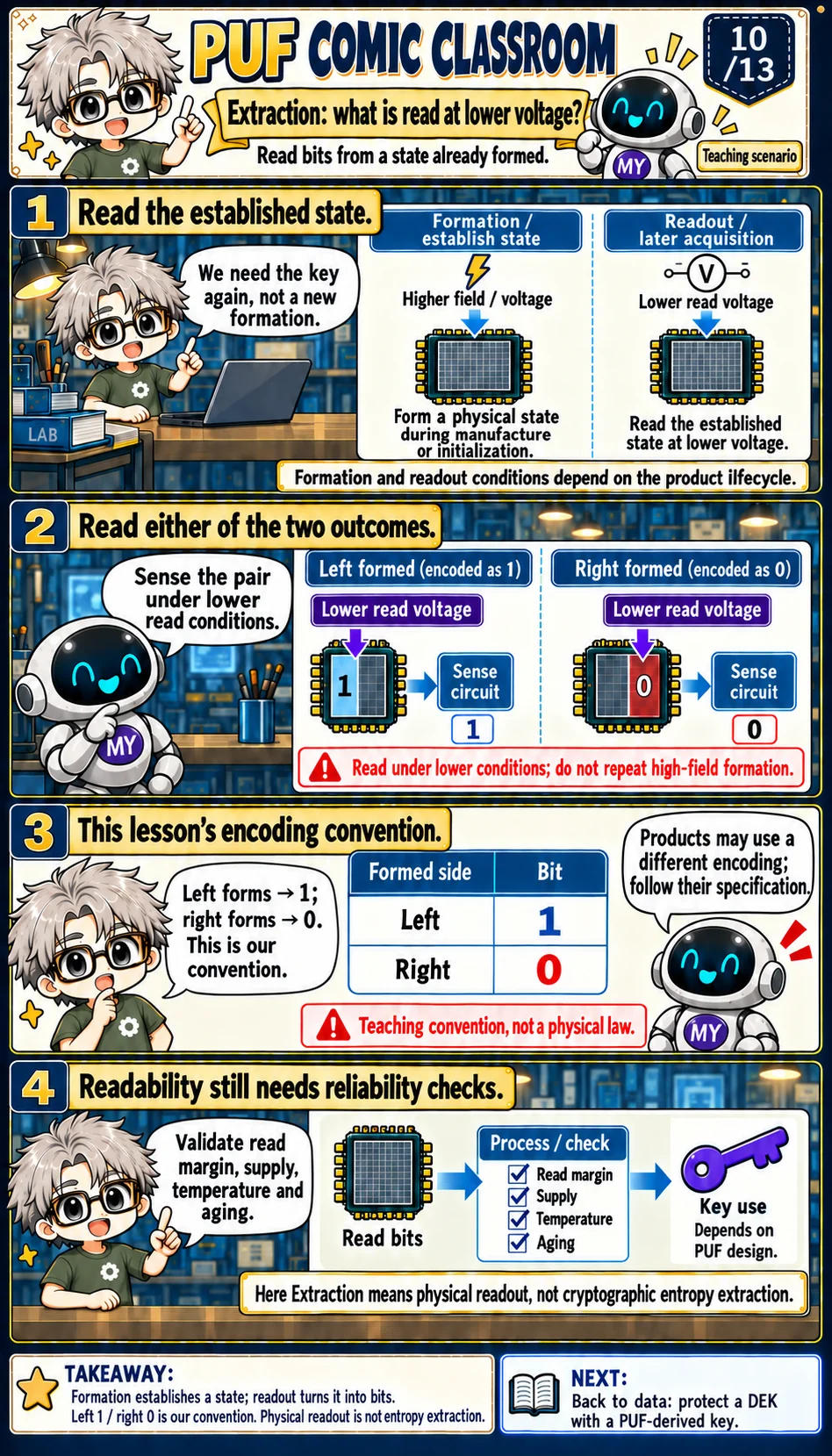

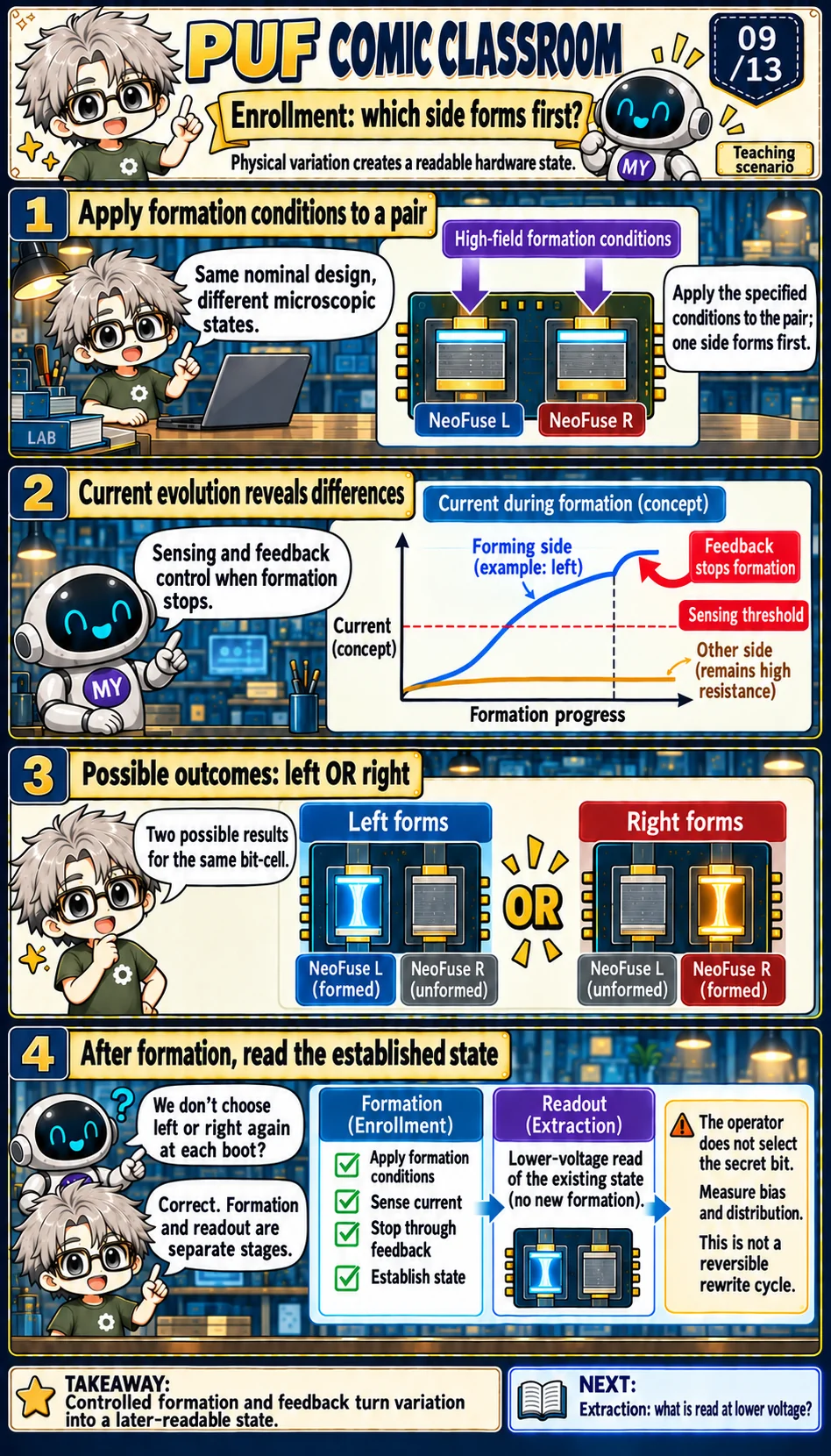

During enrollment, the cell is stressed or programmed under controlled conditions. Because the two sides are not microscopically identical, one side forms the usable physical path first. After enrollment, extraction reads that physical state as a stable 1 or 0. The goal is to keep the identity born from silicon variation while improving long-term stability.

Compared with a raw SRAM PUF flow, the NeoPUF story emphasizes robustness against aging and voltage variation, lower dependence on heavy correction logic, and a cleaner path toward secure key generation or device identity. It still requires careful product integration: access policy, enrollment timing, read margin, test coverage, anti-tamper assumptions, and how the key is handed to the rest of the security subsystem.

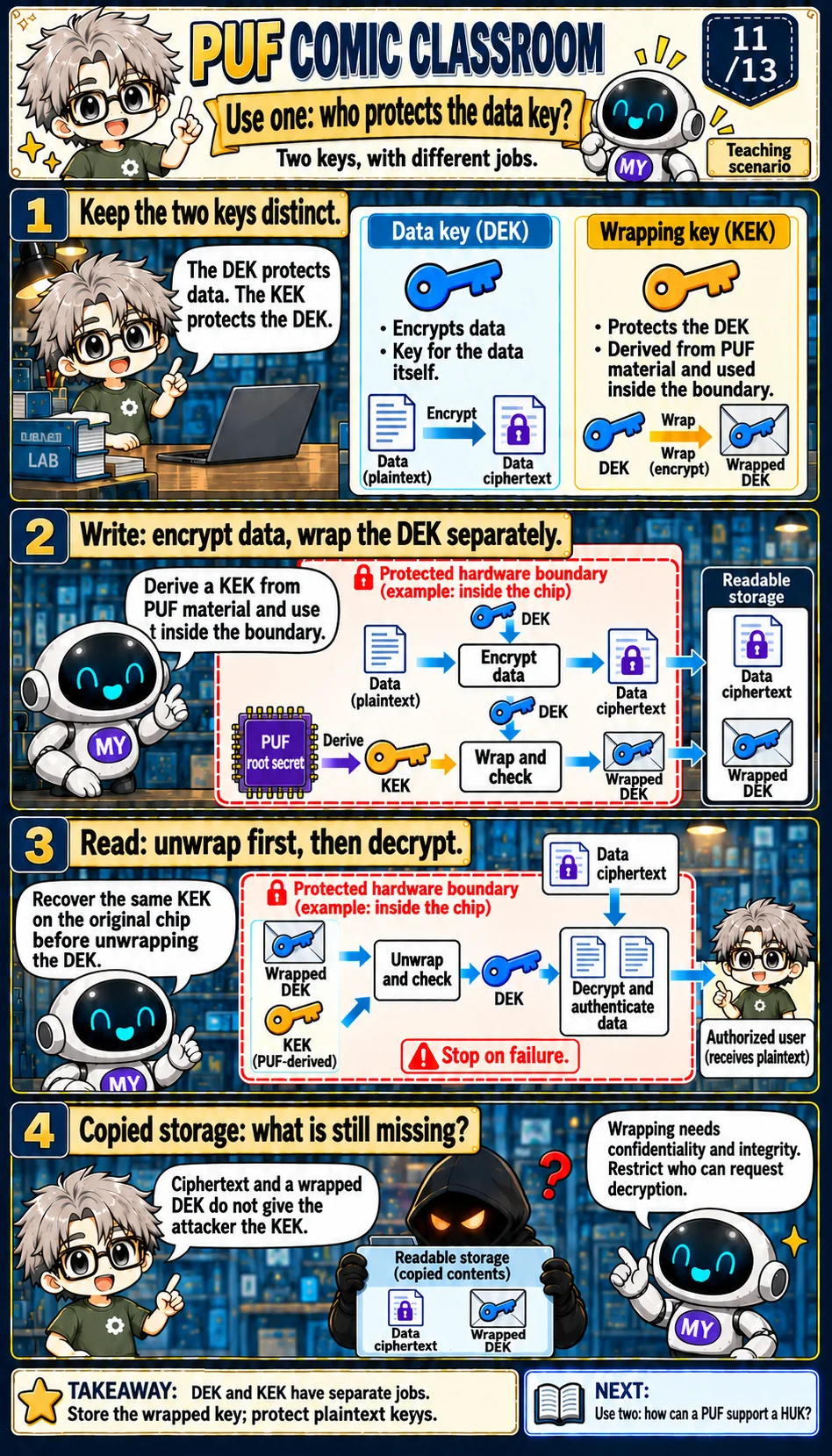

For system architects, the practical takeaway is this: enrollment is where physics becomes a product asset, and extraction is where that asset must behave like a dependable digital primitive. A strong PUF implementation is measured not only by entropy, but by whether it can deliver stable, protected, and auditable identity across the product lifetime.

References

1. eMemory NeoPUF: Official eMemory NeoPUF product reference, including uniqueness, unpredictability, identification, authentication, and security-key-generation positioning.
2. PUFsecurity, NeoPUF: A Reliable and Non-traceable Quantum Tunneling PUF: Technical background comparing SRAM PUF and NeoPUF reliability and extraction concepts.
3. PUF Series 3: The Quantum Tunneling Mechanism of NeoPUF: Article explaining the quantum-tunneling mechanism behind NeoPUF-style cells.
4. Gassend et al., Silicon Physical Random Functions: A foundational paper introducing silicon PUF concepts.
5. NIST SP 800-90B: Useful background for entropy-source evaluation terminology.
